IRG 400 / IRG 400 portable
Fast and precise cable fault pre-location
The IRG 400 is an efficient time domain reflectometer for cable fault pre-location that provides fast and precise measurement results.
The choice is yours, as the IRG 400 is available as a portable device in a transport case or as a 19" plug-in unit in the Syscompact 400 and Syscompact 400 portable. This provides maximum flexibility and is the solution for a wide range of applications.
It can be operated using a tablet or laptop. Operation is extremely efficient when used in combination with the tried-and-tested BAUR Software 4 (laptop) or the new touch-based BAUR BUI-F application (tablet). The new generation of the IRG can be connected to a tablet and laptop via Wi-Fi – thus enabling you to perform galvanically isolated measurements outside of the HV area.
IRG 400 – the advantages
A new operational concept
Adapted to your needs

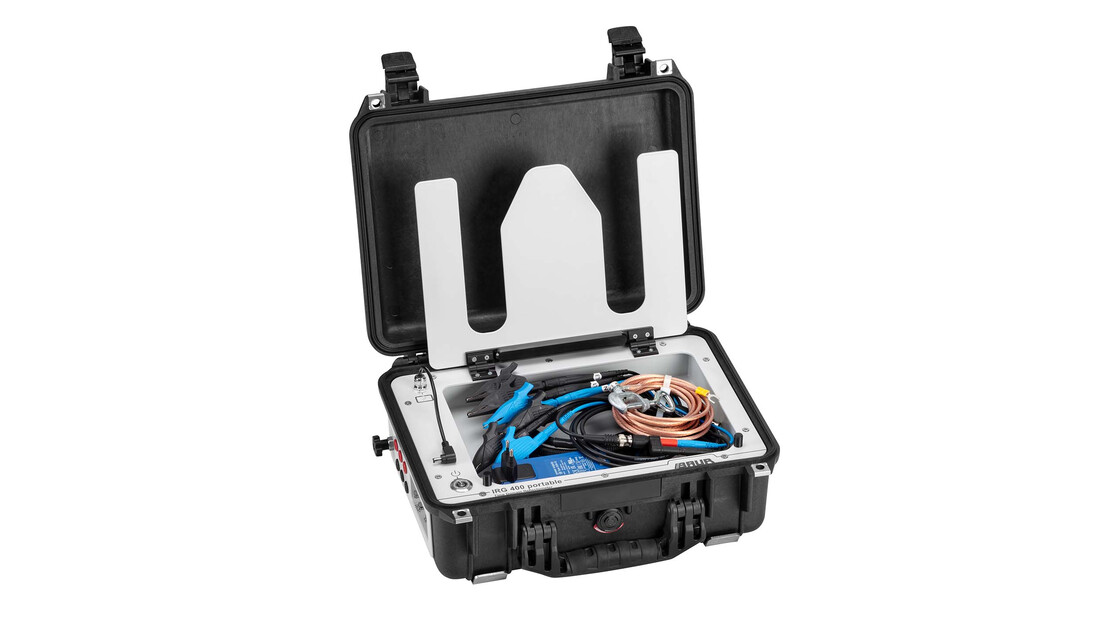

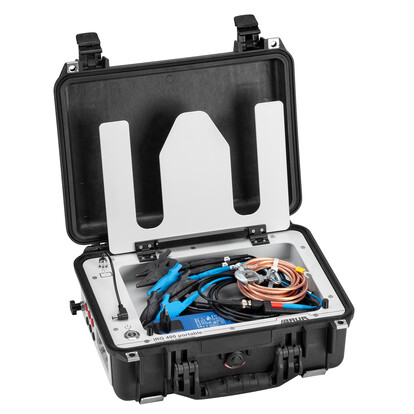

The IRG 400 portable – the transport case version of the impulse measurement device – is operated via a field-compatible 10" tablet on which the new BAUR BUI-F application is installed. As a 19" plug-in unit in the Syscompact, the IRG 400 can be operated either via the tablet or a 15" laptop that is equipped with the BAUR Software 4.
In both instances, the operating control is connected to the measuring device via a radio connection. This means that you can leave the HV area once the IRG is connected and carry out the measurements in a safe, convenient place. Your work is not only safer, but also more convenient and ergonomic.
While the BAUR Software 4 with its multitude of application options and functions is the trump card, the BAUR BUI-F application is a slimline version that you can use to pre-locate cable faults within no time. If you want to compile reports and use the laptop as a working tool in the office, the BAUR Software 4 is the right choice for you!
The new BAUR BUI-F application
Discover the next generation of cable fault location.
The ergonomic design of the user interface and intuitive touch operation make the new BAUR BUI-F application a highly efficient operating control. The high-contrast 1000 cd, high-brightness display makes the IRG easier to operate, especially out in the open.
The new application also scores highly with its practical functions: Length-dependent gain simplifies the evaluation of far-away events, while Step TDR measurement has been developed for close-by events such as illegal branching.
The slimline application is the right choice for those who want to concentrate on the essentials: Fast and precise cable fault pre-location!
IRG 400: Two different applications
Portable case version or 19" plug-in unit for cable fault location system

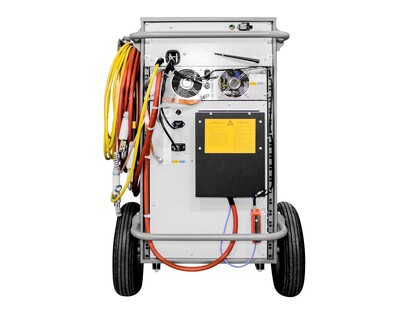

The IRG 400 is available as a portable stand-alone device with transport case or as a 19" plug-in unit for cable fault location systems.
While the portable case version is the quick solution for low-resistive faults, the time domain reflectometer combined with an SSG or built into a system can also locate high-resistive faults quickly and precisely.
As for operation, you can either use a 15.6" laptop with the tried-and-tested BAUR Software 4 or a 10.1" tablet with the innovative touch-optimised BAUR BUI-F application.
What are you interested in?
Product information
Literature
Press
September 2023
Simple and safe:
The IRG 400 time domain reflectometer
The new IRG 400 from BAUR is a user-friendly time domain reflectometer for cable fault pre-location. When combined with a surge voltage generator, it can be used for fault location on all cables and power cables. With three measurement inputs, the IRG 400 enables 3-phase measurement on de-energised lines. It also has an integrated CAT IV/600 V filter and can therefore be used on live cables up to 400 V – with appropriately certified test leads. There are additional ports so that all HV pre-location methods can be used.
