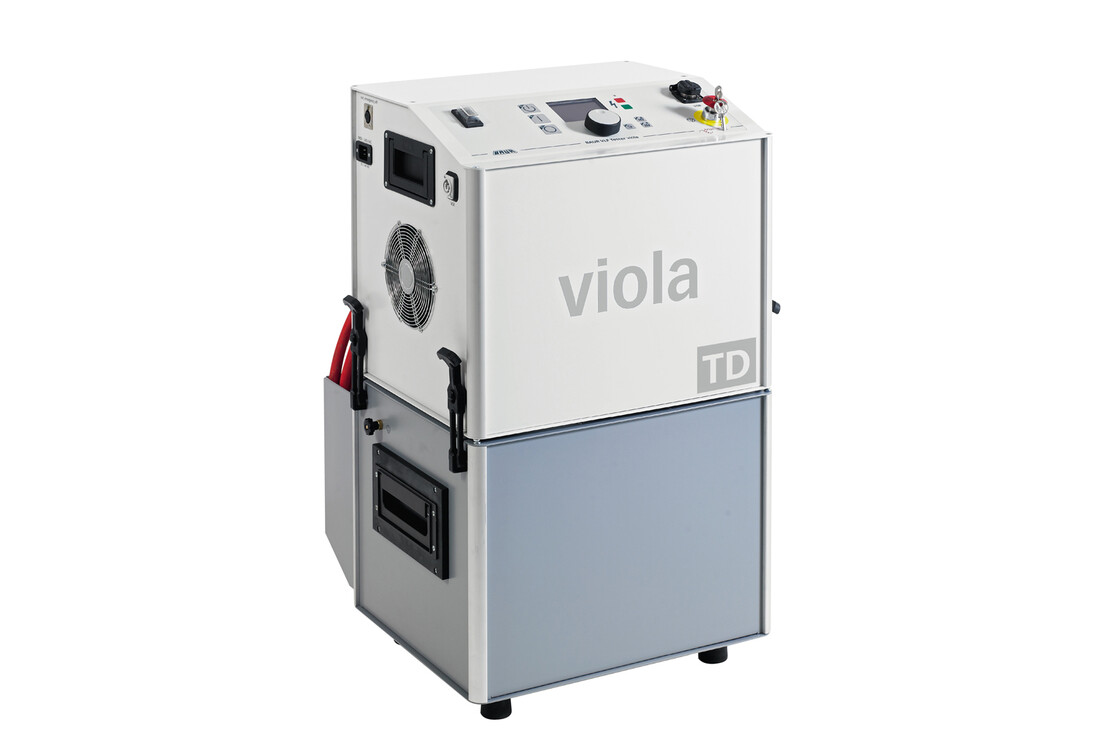

viola TD
High-voltage test and diagnostics device
Cable testing and diagnostics with the BAUR viola TD
The portable and high performance high-voltage testing and diagnostics device is available in two different configurations:
viola: Used for cable and cable sheath testing of electrical equipment and medium-voltage cables up to 35 kV. Another function is insulation testing on electrical equipment.
viola TD: Expands the functional scope of viola with the tan delta diagnostics and Monitored Withstand Test (MWT) that combines the cable testing and dissipation factor measurement. This allows for an accurate and comprehensive assessment of the cable condition.
- Cable testing and dissiation factor diagnostics in one device
- High performance and compact
- Easy and quick test setup
- Automatic testing and diagnostic sequences
We at BAUR can calibrate this product accredited according to ISO/IEC 17025.
Product information
Literature
BAUR References
Cable testing
UIntegrity certified:
VLF testing on the electricity cable of a dredger
The objective of Gasenzer AG from Hinwil while checking an undersea cable in Lake Lucerne in Switzerland was to prevent any potential consequential damage. A transformer in the substation had exploded. It was assumed this had been caused by a damaged cable, as the undersea cable connected to the transformer supplied a dredger and was wound and unwound according to the position of the dredger. The Gasenzer AG engineer first used the measurement technology of the BAUR cable test van to test the cable insulation before carrying out an echometric analysis. Neither showed any signs of a cable fault. Then a subsequent test conducted using the BAUR viola testing device.
BAUR Solution:
The viola testing and diagnostics unit installed in the cable test van in particular was used for the measurements described in the adjacent section.
