tracy
Partial discharge inductor
Cable testing and diagnostics with the BAUR tracy

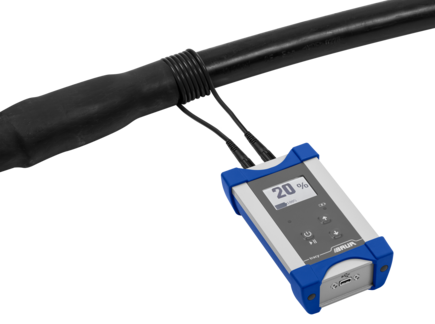

The BAUR tracy partial discharge inductor induces a signal at the apparent fault location in the cable from outside. In combination with any PD measurement system, e.g., PHG TD/PD, the induced signal can be located and compared with the result of the partial discharge pre-location. The partial discharge location can thus be determined precisely.
- Portable, battery-operated signal coupling device
- Suitable for cables and cable accessories
- Inductive signal coupling
- Aviods costly, unnecessary replacements of PD-free cable accessories
Product information
Literature
Supplementary:
![PHG 80 TD PD PHG 80 TD PD](../../../../../XooWebKit/bin/imagecache.php/1f2e7d_ff83343332/d3cd_Q9neR/IM_product_phg-70-80-td-pd_persp_landscape.jpg)
PHG 80 TD PD
VLF tester and
diagnostics device (TD and PD)
for medium-voltage cables
up to 80 kVpeak
Alternatively:
![IM_appli_titron_one-screen_user_1_landscape.png IM_appli_titron_one-screen_user_1_landscape.png](../../../../../XooWebKit/bin/imagecache.php/1a154a_4cf5e52f60/d3cd_Q9neR/IM_appli_titron_one-screen_user_1_landscape.png)
BAUR Software 4
Software package
for cable fault location, cable testing and cable diagnostics
![IRG 4000 IRG 4000](../../../../../XooWebKit/bin/imagecache.php/19d755_d522414172/d3cd_Q9neR/SIM-MIM_Uebersicht.jpg)
IRG 4000
Time domain reflectometer (TDR)
for cable lengths up to 1000 km
![PD-TaD 62 PD-TaD 62](../../../../../XooWebKit/bin/imagecache.php/1a1d3c_c17be5522b/d3cd_Q9neR/IM_product_pd-tad-62_persp_landscape.jpg)

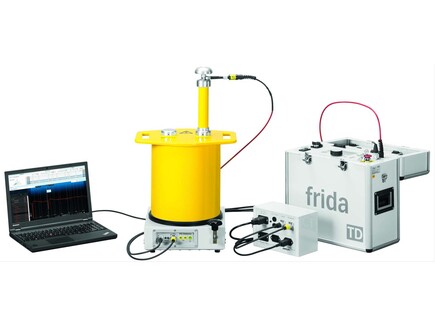

PD-TaD 62
