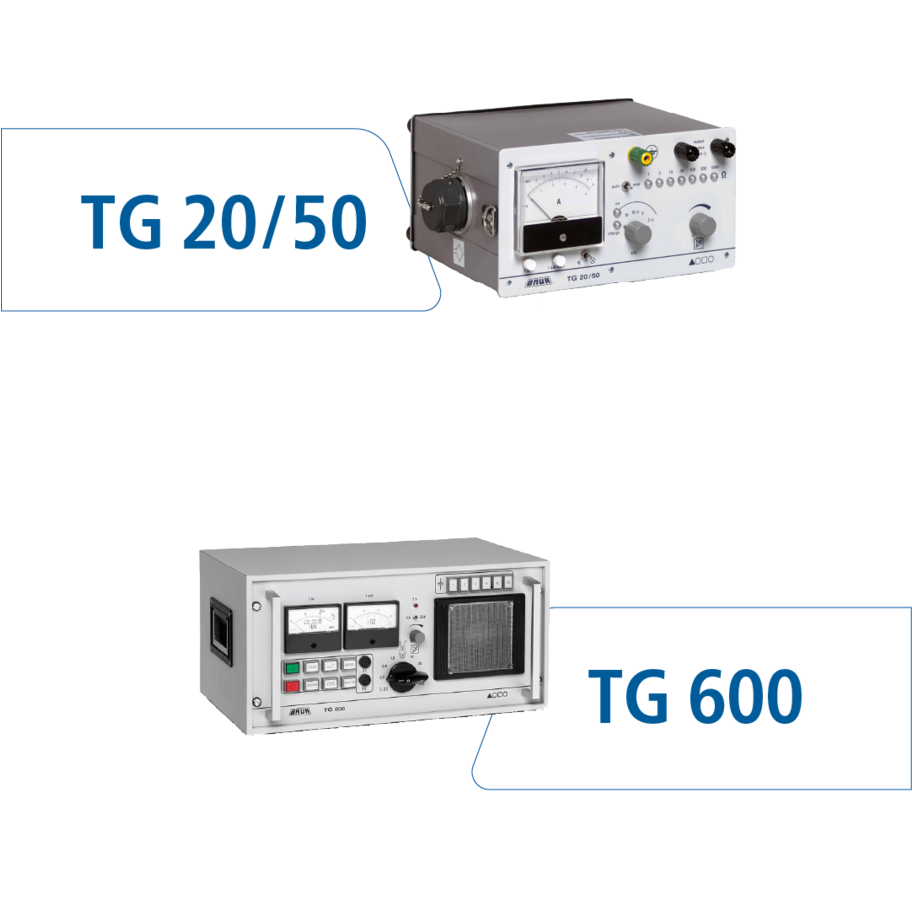

TG 20/50 & TG 600
Audio frequency transmitter
The TG 20/50 and TG 600 audio frequency transmitters are powerful devices for fault location. They are characterised by automatic and manual impedance adjustment and offer flexible application in various environments. With an output power of up to 50 VA and 600 VA respectively, they are ideally suited to reliably handle even demanding tasks.
TG 20/50
The TG 20/50 is a portable, mains- or battery-operated audio frequency transmitter and is used in conjunction with the protrac® pin-pointing system and the AFP audio frequency probe for:
- Tracing
- Pin-pointing using the twist method and the minimum distortion method
- Determining the depth of cables and metal pipes
TG 600
The TG 600 audio frequency transmitter was designed specifically for the precise location of cable faults and joints using the twist method. The display of the input and output current makes selection of the correct adjustment easier.
- High-performance audio frequency transmitter up to 600 VA
- Frequency of 2 or 10 kHz, quartz-stabilised (other frequencies on request)
- Potential-free output
- Impedance adjustment in 8 steps from 0.3 to 300 Ω
