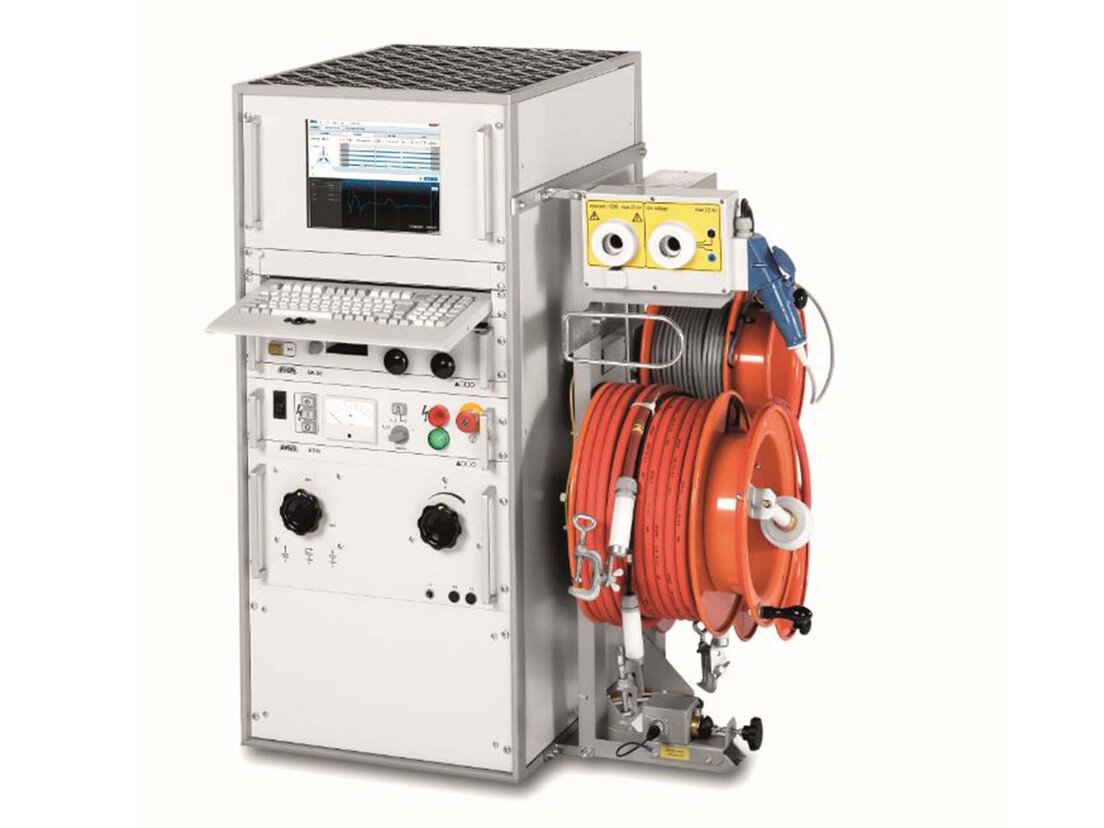

Syscompact 4000
Mobile cable fault location system
Fault location with Syscompact 4000
The Syscompact 4000 is a compact, fully enclosed fault location system for pre-location and pinpointing of high-resistive, low-resistive and intermittent faults on low- and medium-voltage cables. Easy operation and the use of latest fault location methods enable fast and safe fault location.
- Location of low-resistive, high-resistive and intermittent cable faults
- Efficient cable fault pre-location methods
- Pinpointing according to the noise location method or acoustic propagation time measurement
- (with Universal Locator and ground microphone)
- Sheath fault location according to the step voltage method (with Universal Locator and two measurement probes)
- Easy to handle
Product Information
Literature
BAUR References
Cable fault location
Fault finding in the interior of a mountain:
Cable fault location in the pump-fed power station
Robert L’Eplattenier, test engineer and CEO of Gasenzer AG, often travels “in the field” and is even more often in the Swiss mountains.
BAUR solution:
High-resistive faults are made visible with the SIM / MIM method (Secondary Impulse Method / Multiple Impulse Method). Here, the high-resistive fault is „ignited“ by a high voltage impulse and thus is temporarily low-resistive. This helps determine the distance to the fault. This is evaluated and displayed by the device software, e.g. by the Syscompact 2000 or Syscompact 3000 software. The SIM and MIM methods have proven to be particularly advantageous because they help pre-locate faults in up to 98 % of all cases.
