Cable fault location

Product categories

Despite major developments in this field, faults still occur frequently in cable systems for various reasons. In addition to trained personnel, you also need very efficient equipment to rectify faults.



Cable fault location devices and systems from BAUR cover the entire cable fault location process:

The initial fault analysis provides the basis for determining the subsequent procedure in the fault location process. During pre-location, the position of the fault is roughly located. The subsequent pin-pointing enables precise determination of the cable fault. Cable identification is used to identify the defective cable in a route. You can use various measurement methods depending on the type of fault and cable type.

All products: Cable fault location

1-24 of 31 products
BAUR ATG 2

ATG 2

Burn down transformer
with max. voltage of 10 kV

BAUR ATG 6000

ATG 6000

Burn down transformer
with max. voltage of 15 kV


BAUR Software 4

Software package
for cable fault location, cable testing and cable diagnostics

CL 20

CL 20

Handy device
for locating cable routes
and metal pipes

frida

frida

VLF tester
for medium-voltage cables
up to 36 kVpeak

IRG 400 / IRG 400 portable

IRG 400 / IRG 400 portable

Time domain reflectometer / echometer

IRG 4000

IRG 4000

Time domain reflectometer (TDR)
for cable lengths up to 1000 km

IRG 4000 portable

IRG 4000 portable

Portable time domain
reflectometer (TDR)
for cable lengths up to 1000 km

KSG 200

KSG 200

Cable identification system
for use on de-energised and
live low-voltage cables

PGK 110 HB

PGK 110 HB

Voltage test
with DC or AC 50 Hz
110 kV, 14 mA

PGK 110/5 HB

PGK 110/5 HB

Voltage test
with DC or AC 50 Hz
110 kV, 66 mA

PGK 150 HB

PGK 150 HB

Voltage test
with DC or AC 50 Hz.
150 kV, 9 mA

PGK 150/5 HB

PGK 150/5 HB

Voltage test
with DC or AC 50 Hz
150 kV, 50 mA

BAUR PGK 25

PGK 25

DC HV tester
for use on low- and
medium-voltage cables up to 25 kV

PGK 70/2.5 HB

PGK 70/2.5 HB

Voltage test
with DC or AC 50 Hz.
70 kV, 50 mA

PHG 80 portable

PHG 80 portable

VLF tester
for medium-voltage cables
up to 80 kVpeak

PHG 80 TD

PHG 80 TD

VLF tester and diagnostics device (TD)
for medium-voltage cables
up to 80 kVpeak

PHG 80 TD PD

PHG 80 TD PD

VLF tester and
diagnostics device (TD and PD)
for medium-voltage cables
up to 80 kVpeak

protrac®

protrac®

ALL-IN-ONE
cable fault location and
tracing system

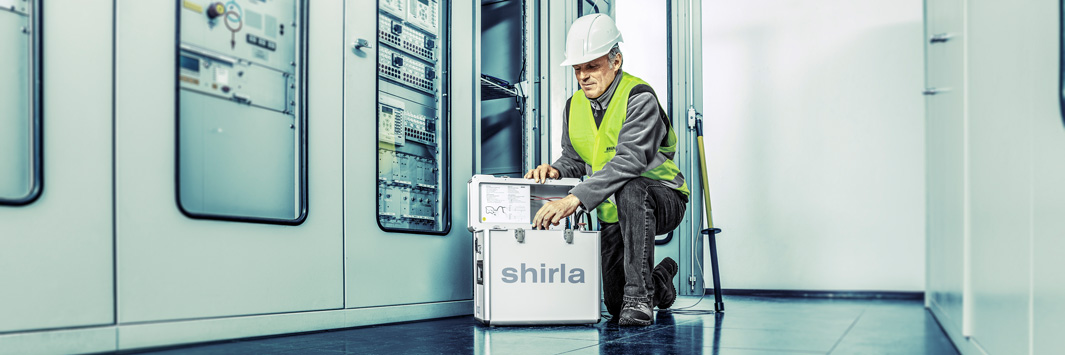

shirla

shirla

Portable device
for cable sheath testing
and fault location

SSG 1100

SSG 1100

Surge voltage generators,
max. surge energy: 1100 J
Voltage: 0 – 8, 16, 32 kV

SSG 1500

SSG 1500

Surge voltage generators,
max. surge energy: 1536 J
Voltage: 0 – 8, 16, 32 kV

SSG 2100

SSG 2100

Surge voltage generators,
max. surge energy: 2048 J
Voltage: 0 – 8, 16, 32 kV

BAUR SSG 1100 - 3000

SSG 3000

Surge voltage generators,
max. surge energy: 3000 J
Voltage: 0 – 8, 16, 32 kV

1-24 of 31 products
